Self-Priming Chemical Centrifugal Pump – Model 80HZ50-30
A Real Request from Brazil
A Brazilian customer recently needed a self-priming chemical centrifugal pump. He was very clear about one thing:
Standard end-suction pumps would not work for his application.
After reviewing his requirements, we recommended the CIXIFM 80HZ50-30.
Here is why.
What the Customer Needed
The customer provided the following key parameters:
-
Flow: 50 m³/h
-
Head: 30 m
-
Speed: ~2900 rpm
-
Motor power: 7.5 – 11 kW
-
Pump type: Self-starting, horizontal end-suction, self-priming
-
Wetted parts: SS304 or SS316 stainless steel
-
Seal system: Double mechanical seal (tandem) with integrated cooling pot
-
Instrumentation: Temperature sensor and liquid level indicator
-
Motor: Explosion-proof Ex d IIB T4, 380V/50Hz
-
Application: Chemical liquids, continuous operation
These specifications point directly to a self-priming pump, not a standard centrifugal pump.

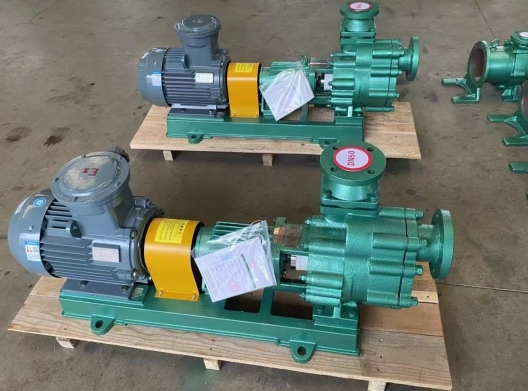

Our Recommended Model: 80HZ50-30
| Specification | Detail |
|---|---|
| Model | 80HZ50-30 |
| Flow rate | 50 m³/h |
| Head | 30 m |
| Speed | 2900 rpm |
| Power | 11 kW (2-pole) |
| Motor type | Explosion-proof, Ex d IIB T4 |
| Voltage | 380V / 50Hz / 3-phase |
| Wetted material | SS304 (SS316 optional) |
| Inlet / Outlet | DN80 |
| Seal arrangement | Tandem double mechanical seal |
| Cooling | Integrated seal cooling pot |
| Sensors | Temperature + liquid level indicator |
Why a Self-Priming Pump?
A standard end-suction pump cannot handle suction lift or air in the line without manual priming.
A self-priming chemical centrifugal pump offers:
-
Automatic air removal from the suction line
-
No foot valve or manual priming required
-
Reliable start-up even with intermittent operation
-
Better performance for chemical transfer applications
For continuous chemical liquid handling, this reliability is essential.
Sealing System for Continuous Operation
The customer required a double mechanical seal in tandem arrangement with a seal cooling pot.
Our 80HZ50-30 delivers:
-
Primary and backup mechanical seals
-
Circulating coolant to prevent overheating
-
Temperature sensor for monitoring
-
Liquid level indicator for quick visual check
This setup ensures long, trouble-free operation with chemical liquids.
Explosion-Proof Motor
The Ex d IIB T4 motor means:
-
Ex d – Flameproof enclosure
-
IIB – Suitable for typical industrial gases
-
T4 – Maximum surface temperature ≤135°C
This makes the pump safe for hazardous environments such as chemical plants and paint facilities.
Power supply is 380V/50Hz, matching the customer’s local standard.
What We Provided to the Customer
To help the customer move forward, we delivered:
-
Recommended model – 80HZ50-30
-
QH performance curve
-
GA drawing with dimensions
-
Pump weight
-
Delivery time for 5 units
-
EXW and FOB pricing
Who Should Consider This Pump?
The CIXIFM 80HZ50-30 is suitable for:
-
Chemical liquid transfer
-
Paint, coating, and resin applications
-
Solvent and mild acid handling
-
Processes requiring suction lift
-
Hazardous areas with explosion-proof requirements
If your duty point is close to 50 m³/h at 30m head, this model is worth eva luating.
Final Thoughts
If you need a self-priming chemical centrifugal pump with:
-
50 m³/h at 30m head
-
Explosion-proof Ex d IIB T4 motor
-
SS304 or SS316 wetted parts
-
Tandem mechanical seal with cooling pot
-
Horizontal end-suction self-priming design
…then the CIXIFM 80HZ50-30 is a reliable, proven solution.
We have already quoted this to a Brazilian chemical customer and are ready to support similar projects worldwide.
