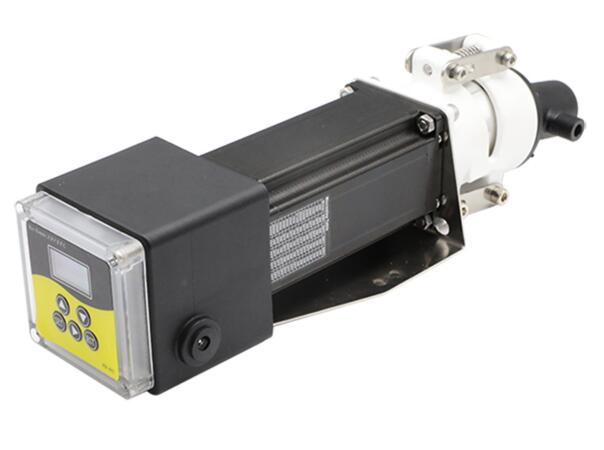

Valveless Plunger Pump Measurable Media
Valveless Plunger Pump Measurable Media
Tested with over 200 media: This valveless plunger pump is truly "undemanding."
It has handled 46# machine oil, as well as hydrochloric acid, acetone, and dichloromethane.
It has measured a single 0.3g dose of glycerin and supported 24-hour continuous spraying of 500ml.
What can it spray?
Category | Examples of Media
Strong Acids & Bases: Hydrochloric acid, nitric acid, sulfuric acid, phosphoric acid, sodium hydroxide, ammonia, perchloric acid
Organic Solvents: Acetone, xylene, toluene, ethyl acetate, dichloromethane, methanol, ethanol
Oils: 46# machine oil, hydraulic oil, diesel oil, gasoline, transformer oil, silicone oil, edible oil
Water: Pure water, ultrapure water, deionized water, distilled water
Viscous Liquids: Glycerin, syrup, AB glue, adhesive, gelatin, protein solution, dairy products
Specialty Liquids: Ink, perfume, nicotine, hyaluronic acid, electrolyte, curing agent
As long as three conditions are met: no particles, no curing, and no corrosion to ceramics/PTFE—it can be stably transported.
Key Parameters
Specifications Parameters
Single Displacement 0-0.13cc (adjustable)
Minimum Dosage 0.3g/2 seconds per spray
Continuous Spray 500ml per 24 hours
Suitable Viscosity Water → Edible Oil
Summary in One Sentence From strong acids to silicone oils, from trace amounts to continuous flow—a good pump is one that can handle any medium.
If you have specific selection and quotation requirements for precision valveless plunger pumps or liquid transfer pumps, please contact CIXIFM Winny:
Email: sales01@cxflowmeter.com
WhatsApp: 008618049841995
